150 LPM TIPPER VALVE.

BZDP150

9041890/3

• Max Flow: 150 L/Min.
• Max: 350 Bar Working Pressure.

150 LPM, Litres Per Minute Proportional Open Circuit Tipping Valve.
Pneumatically Operated.

350 Bar Max. Relief.
"P" Port 3/4" BSP (Input/Pump).
"C" Port 1" BSP (Cylinder).
"T" Port 1" BSP. (Tank/Return).

Pneumatic Port = 1/8" BSP.

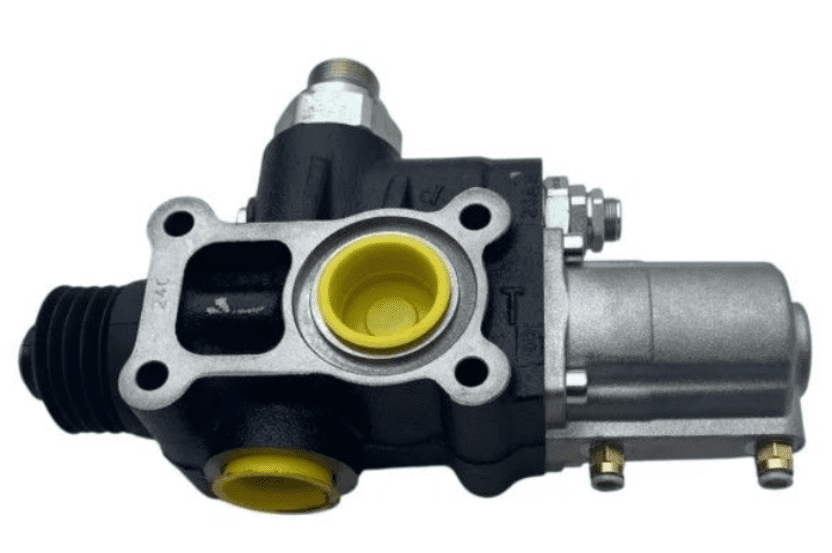

PHOTO FOR ILLUSTRATION PURPOSES ONLY.

These Valves are now Painted Black.
